Topic
This article explains how to mount image backups to the cloud, allowing you to access files and folders for download or restoration.
Environment
NinjaOne Backup
Description
If you have an Image backup plan where you've chosen cloud storage, NinjaOne Backup enables you to easily mount volumes and access the files and folders for download or restoration to any machine within the organization that has backup enabled.
This method is more straightforward than a full image restore. It is available to NinjaOne technicians or end users with proper permissions. Mounting an image from the cloud may be a good option if you only need to access specific files or folders.
If you need to restore an entire image or volume, or if you only have local image backups available, refer to NinjaOne Backup: Image Restores for alternative methods.
- This capability is only available to NinjaOne Technicians and Users to whom you grant backup access.
- Only image backup data in the cloud can be mounted using this method. You cannot mount backup data stored locally or on network storage devices using this method.
- You can only mount NTFS-formatted file system volumes. You cannot mount ReFS-formatted volumes.
- The restore option provides greater speed and resiliency over download when the file size exceeds 10GB.
Mounting an Image
To mount an image backup and access its contents, follow these steps.

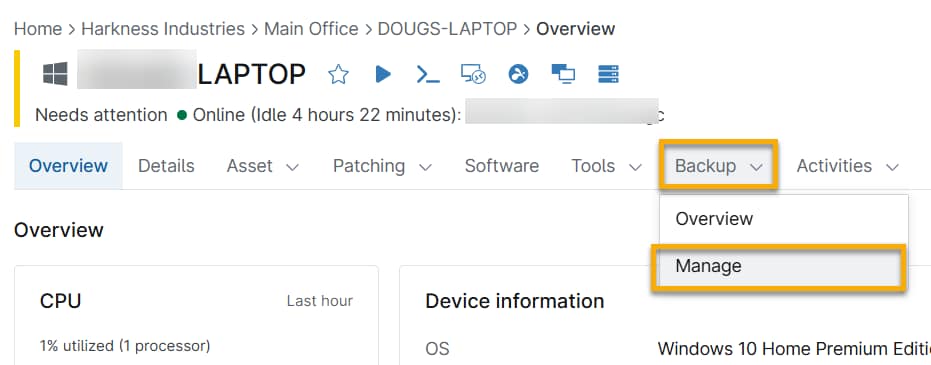

Navigate to the device dashboard for the image backup data you would like to mount. Move your cursor over the Backup tab and select Manage.

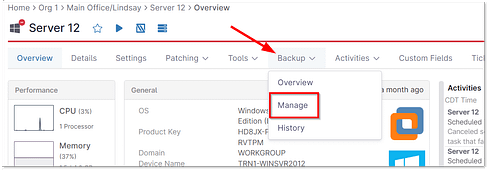

Figure 1: Manage (click to enlarge)

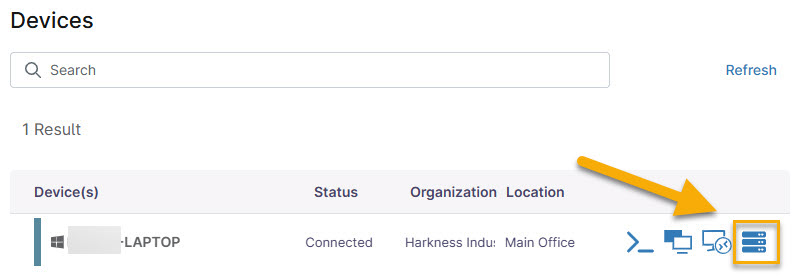

Note that if you are an end-user, your device view will look slightly different. In this case, click the drive icon at the end of the device listing to launch the Backup Manager.Figure 2: End-user view (click to enlarge) The remainder of the steps share the same view for technicians or end-users.
Click the image plan in question.

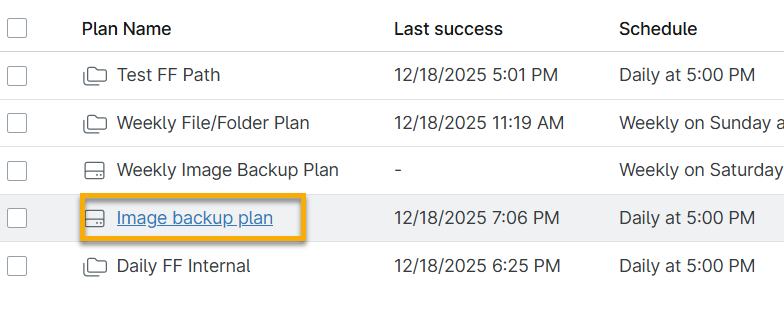

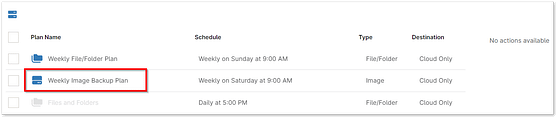

Figure 3: Image plan (click to enlarge) Click the volume whose backup data you want to mount.

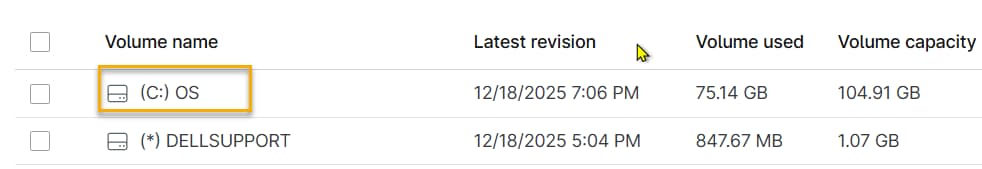

Figure 4: Volume (click to enlarge) Click the revision whose data you want to mount.

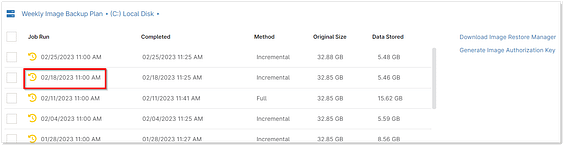

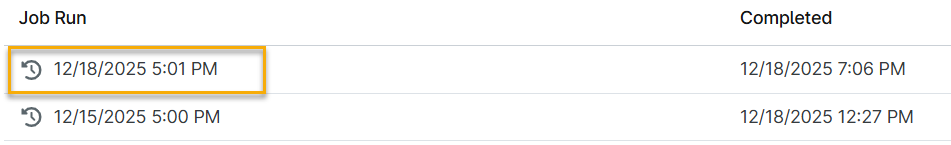

Figure 5: Revision (click to enlarge) You will receive a prompt to confirm your selections. Click Mount.

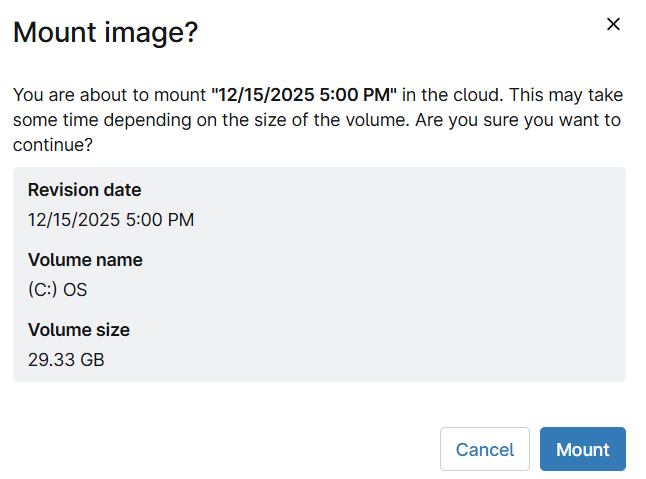

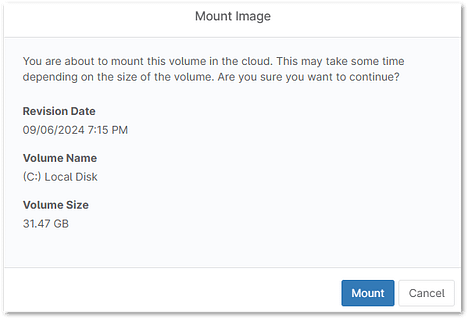

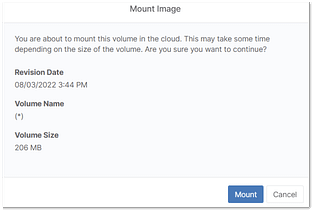

Figure 6 Mount (click to enlarge) - NinjaOne will mount the volume. Mounting may take some time, depending on the size of the image backup. A "mounting volume..." message will appear on your screen while the mount is in progress.

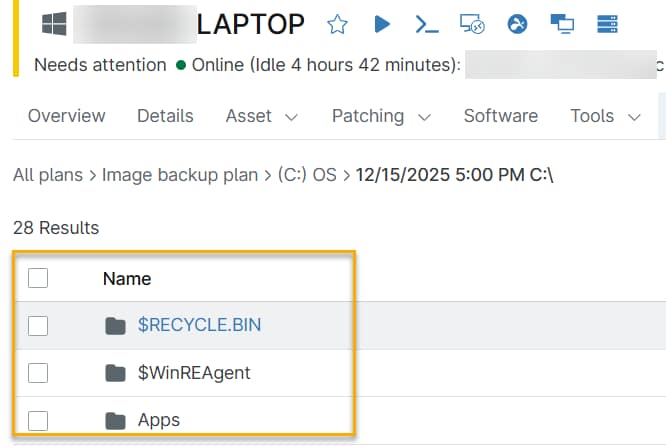

Once the data mount is complete, browse through the files and folders within the volume to find the files you'd like to download or restore.

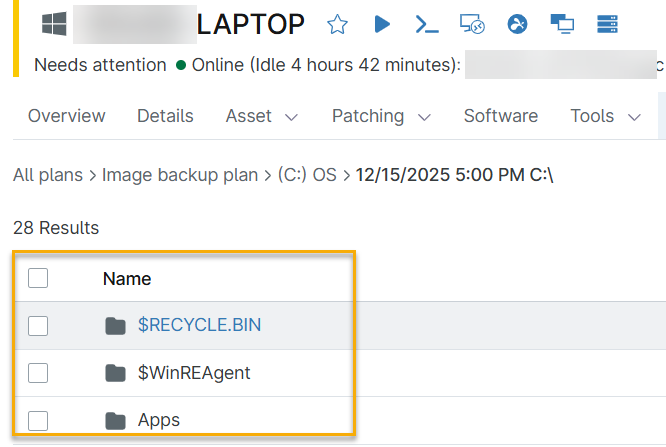

Figure 7: Results (click to enlarge)
Download and Restore Options

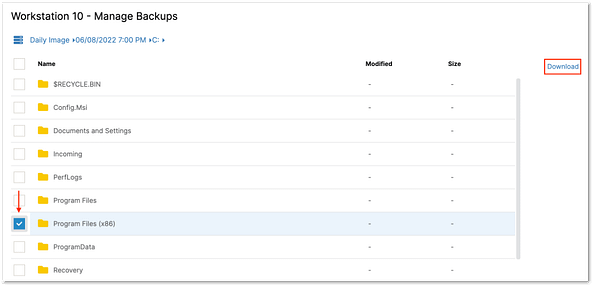

Once you've selected a file or folder, NinjaOne displays a "Download" button and a "Restore" button.
The sections below explain how each option works.
Download

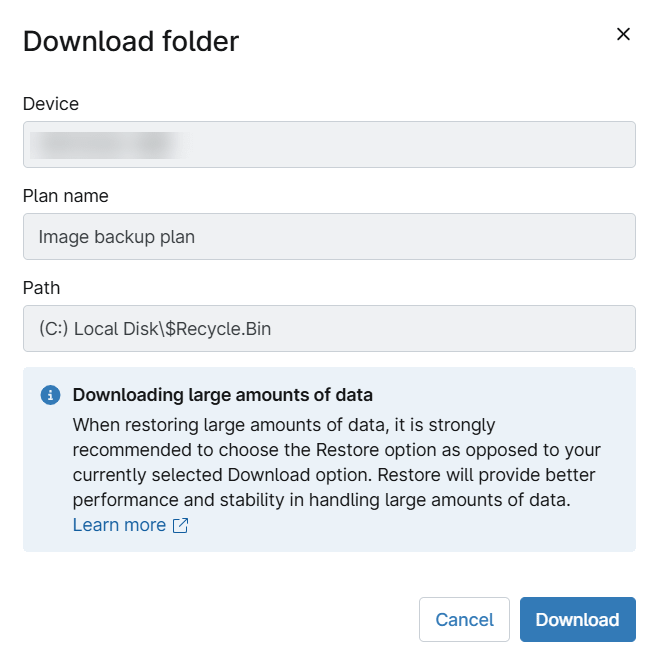

When you click the Download button, NinjaOne displays the following Information:
- Device: The machine from which NinjaOne backed up the data.
- Plan name: The backup plan that created the backup
- Path: The location of the data on the original device.
Click Download to save a copy of the selected file or folder to your computer.
Restore
The Restore option allows you to restore the file or folder to a location of your choice. You can restore files or folders to their original location, or browse to specify a different location. When you click the Restore button, NinjaOne displays the following Information:
- Device: The machine from which NinjaOne backed up the data.
- Plan name: The backup plan that created the backup
- Path: The location of the data on the original device.
- if file exists*: If a file already exists at the destination, you can choose Skip, Overwrite, or Overwrite current if older.
- Restore location*: You can choose Original location or Other location.
- Location*: If you chose Other location, the Location drop-down menu will appear so you can select the new location.
- Browse other locations*: If you chose Other location, you can use this field to browse to the location you wish to use.
To restore a file or folder, set your preferences above and click Restore.
